VE6WZ
Steve, VE6WZ made his version of the RX-amp with a build in relais to protect the RX-amp during TX.
The 9-circle combiner is on one pcb and Steve added the well known RX-preamp with a 2N5901 to the combiner.
A walk true video by VE6WZ at his location showing the YCCC 9 circle rx array installation.
A note from Steve: Read the YCCC manual, watch all video's, re-read the manual again and think! You needs some knowledge of electronics to build this units. He is not a helpdesk on How-to....
A new 9-circle combiner is designed by Steve without the need of the common mode choke. Also the extra pre-amp has removed in thes design.
If you wish to build the array with the pcb's from Steve, we can provide them too via the webshop!
 |

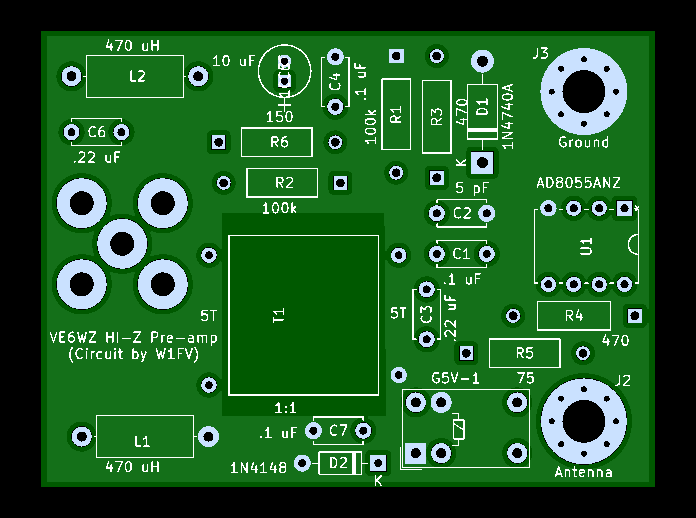

A schematic view of the amp for understanding and fault search. The value of each component is written in the BOM Steve describe the rx-amp in a you-tube video In case of trouble there are 2 video's how to check the pre-amp |
|
 |

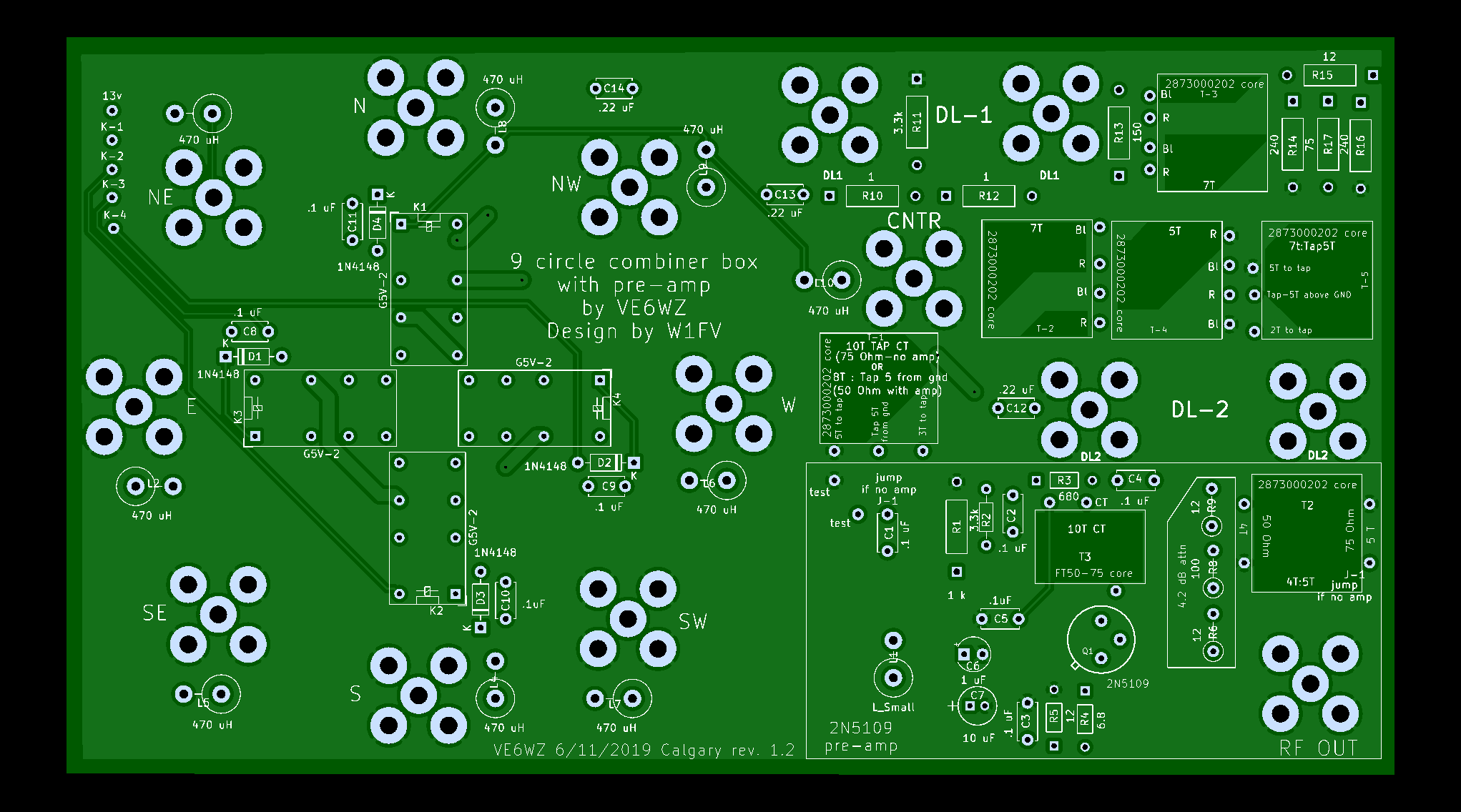

A schematic view of the combiner for under standing and fault search. The value of each component is written in the BOM Steve describe the 9 circle combiner in a you-tube video. A test procedure is shown in a video as well |
|
| New print without extrenal chokes and new pre amp | ||
 |

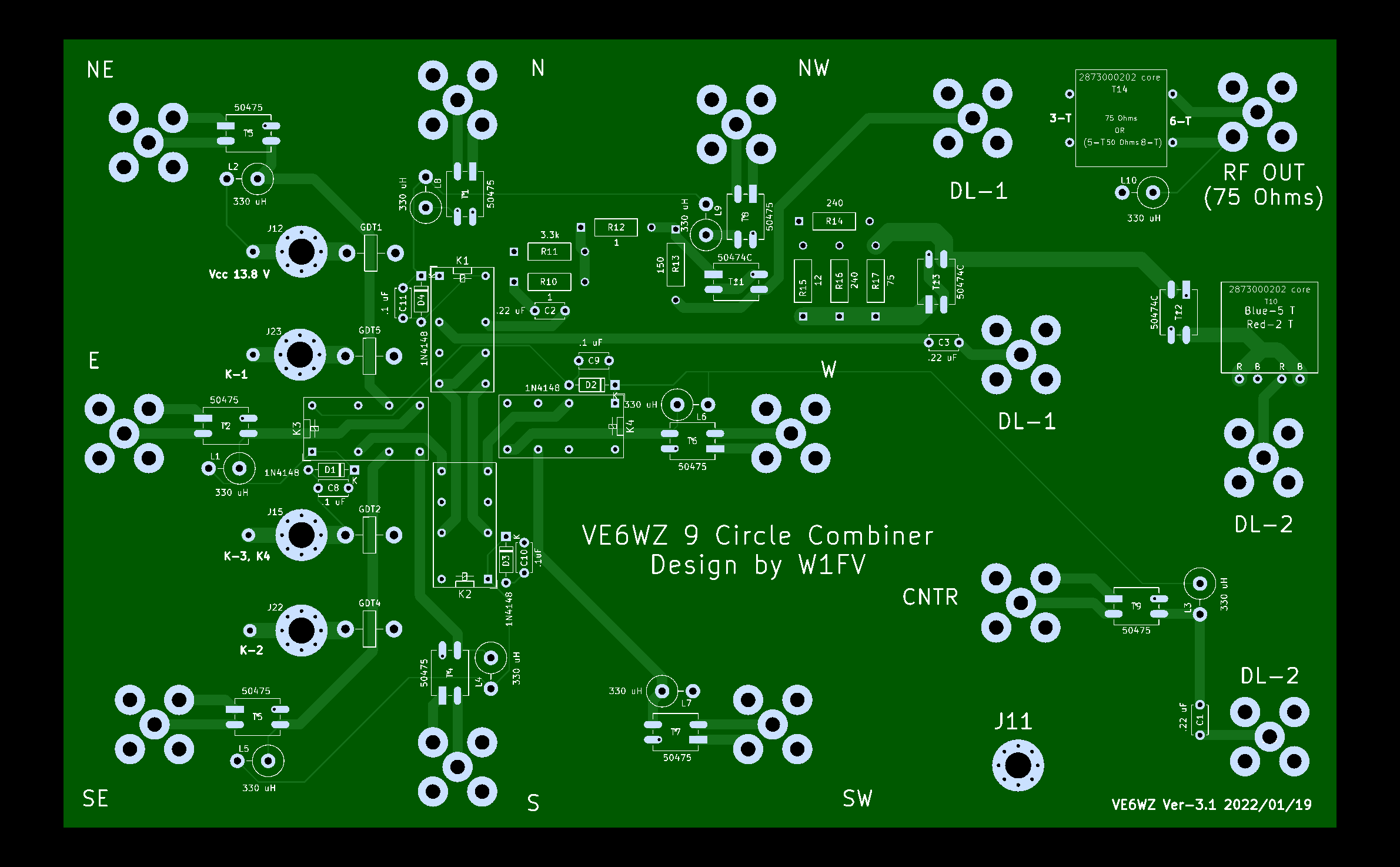

This is the new creation by Steve on the switch unit. There is no need any more for an extrenal common mode choke with the 2 ferrit core and RG179 coax. This uint has build-in common mode choke. In this video Steve explain this design. The value of each component is written in the BOM A schematic view of the combiner for under standing and fault search. |
|
 |

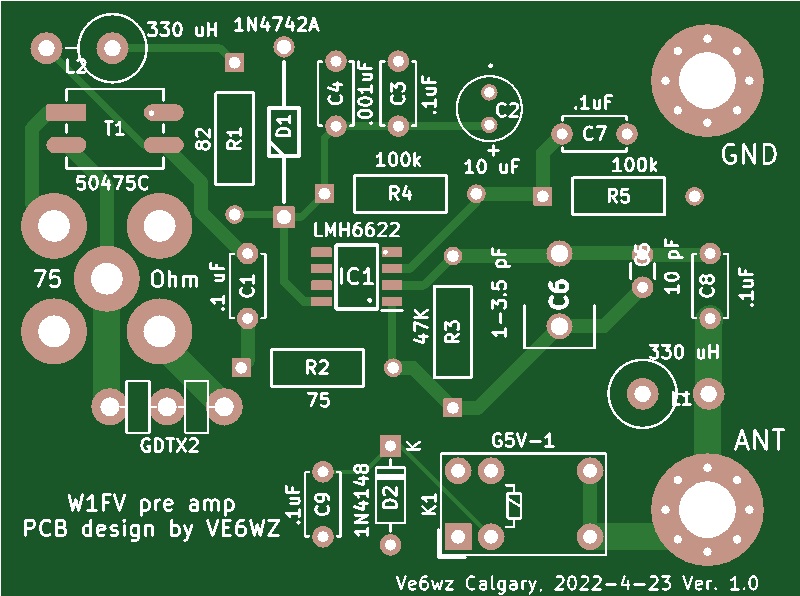

This is a new creation by Steve on the rx-amp at the base of the antennas. In this video Steve explain this design. The value of each component is written in the BOM | |
