For better viewing every picture can be enlarged by clicking on the picture. Each print has a label name. In the table you will find a value for each component.

Print orientation.

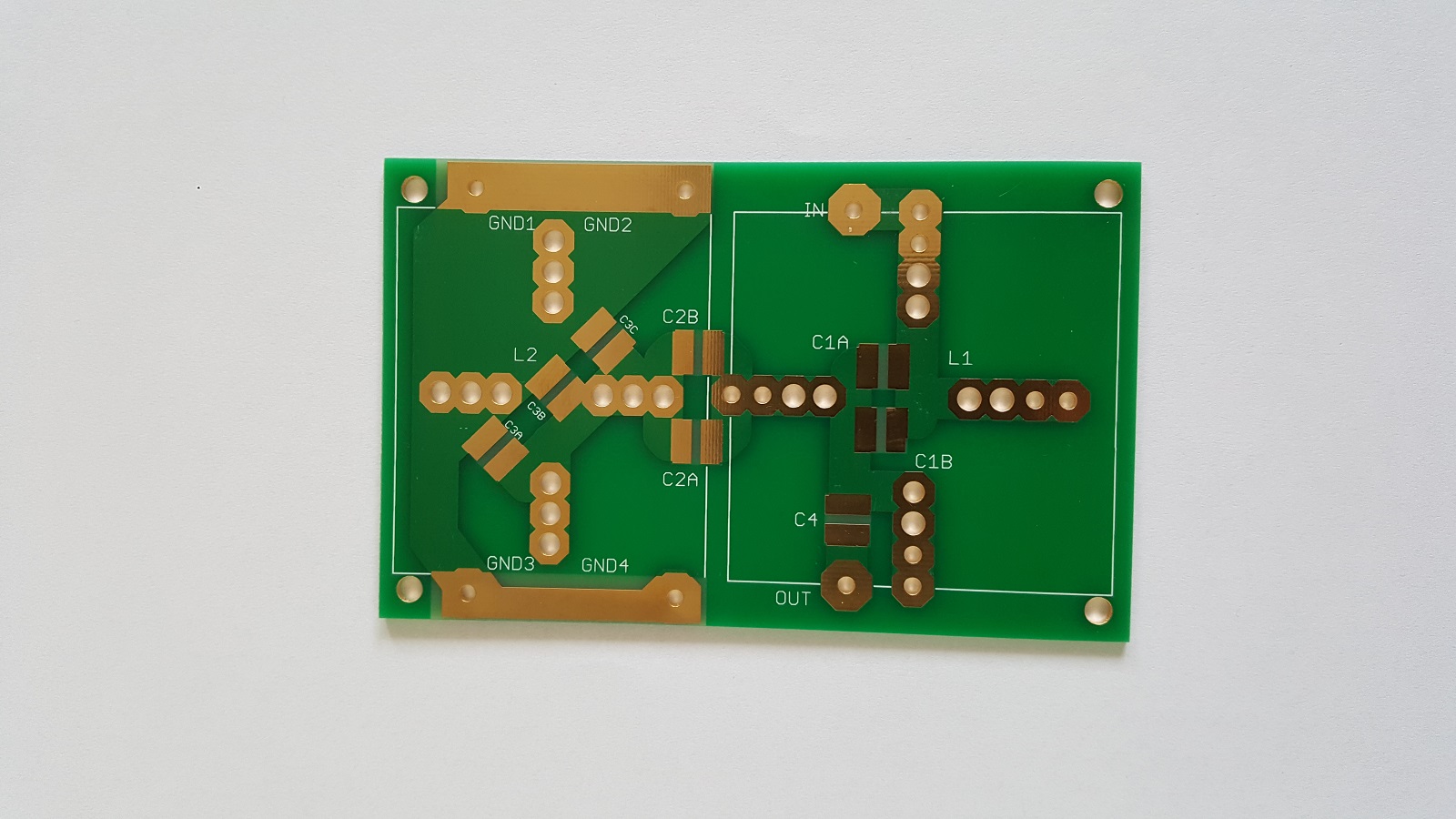

A single filter print.

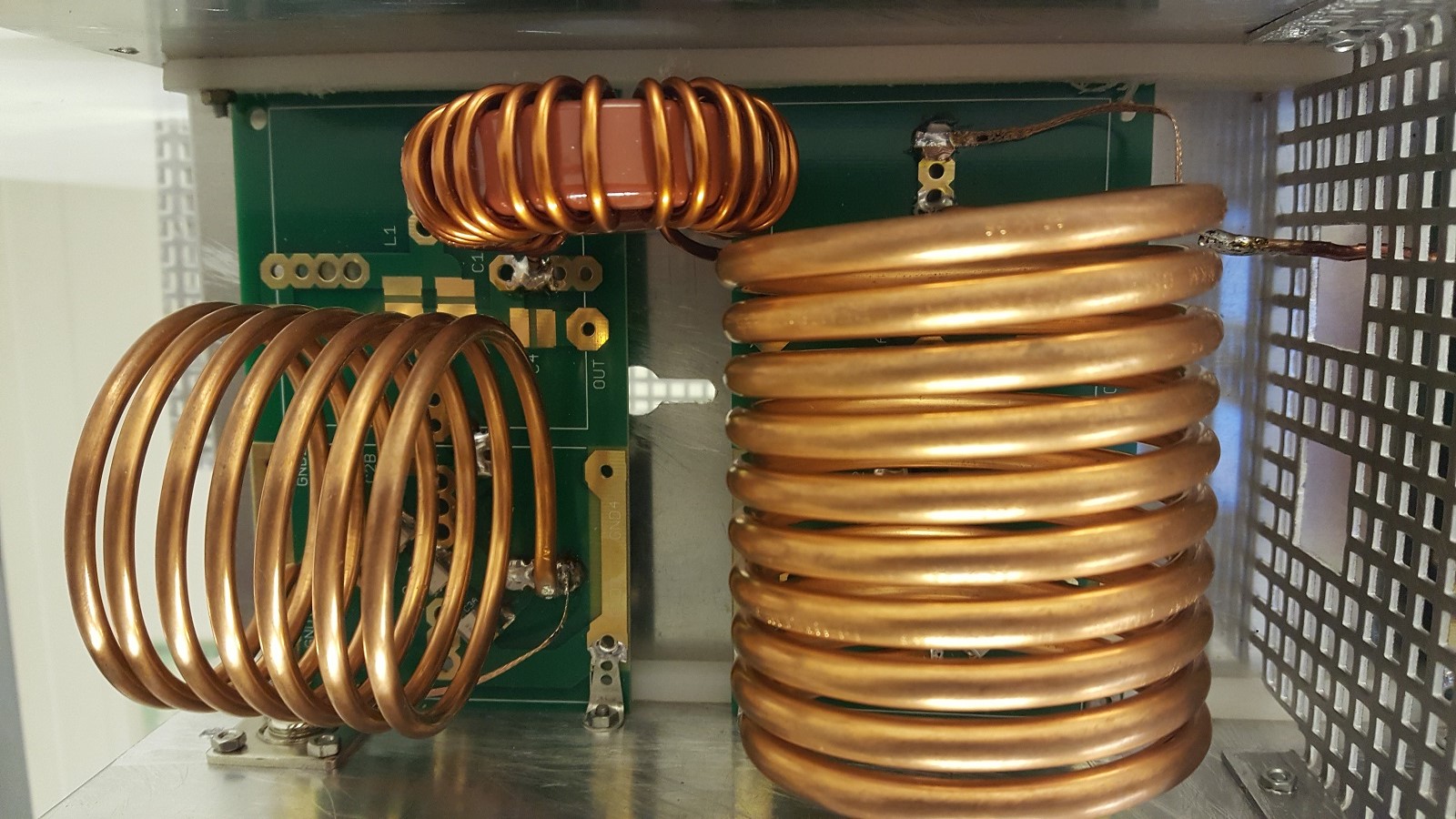

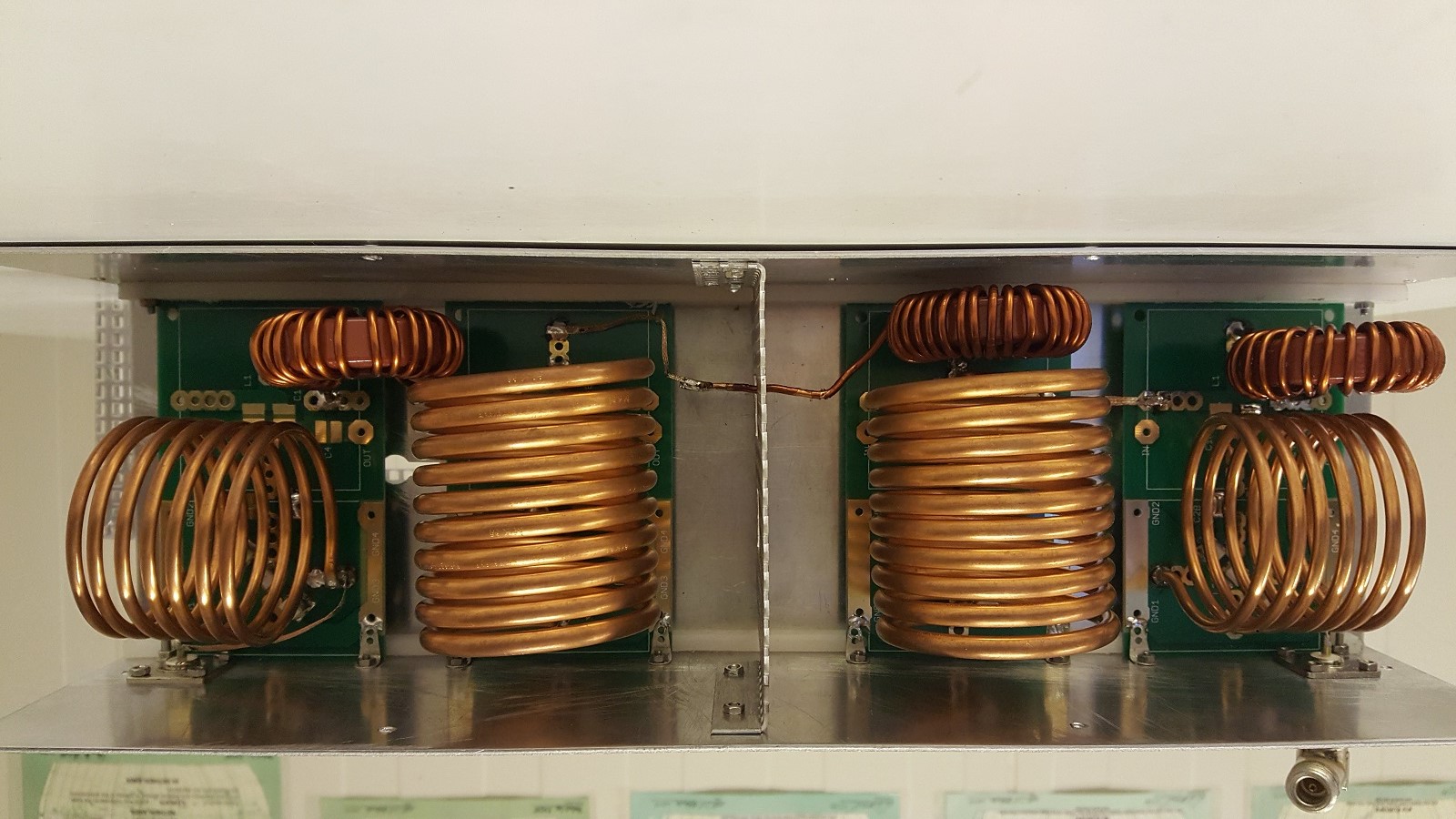

Top view 160 meter filter.

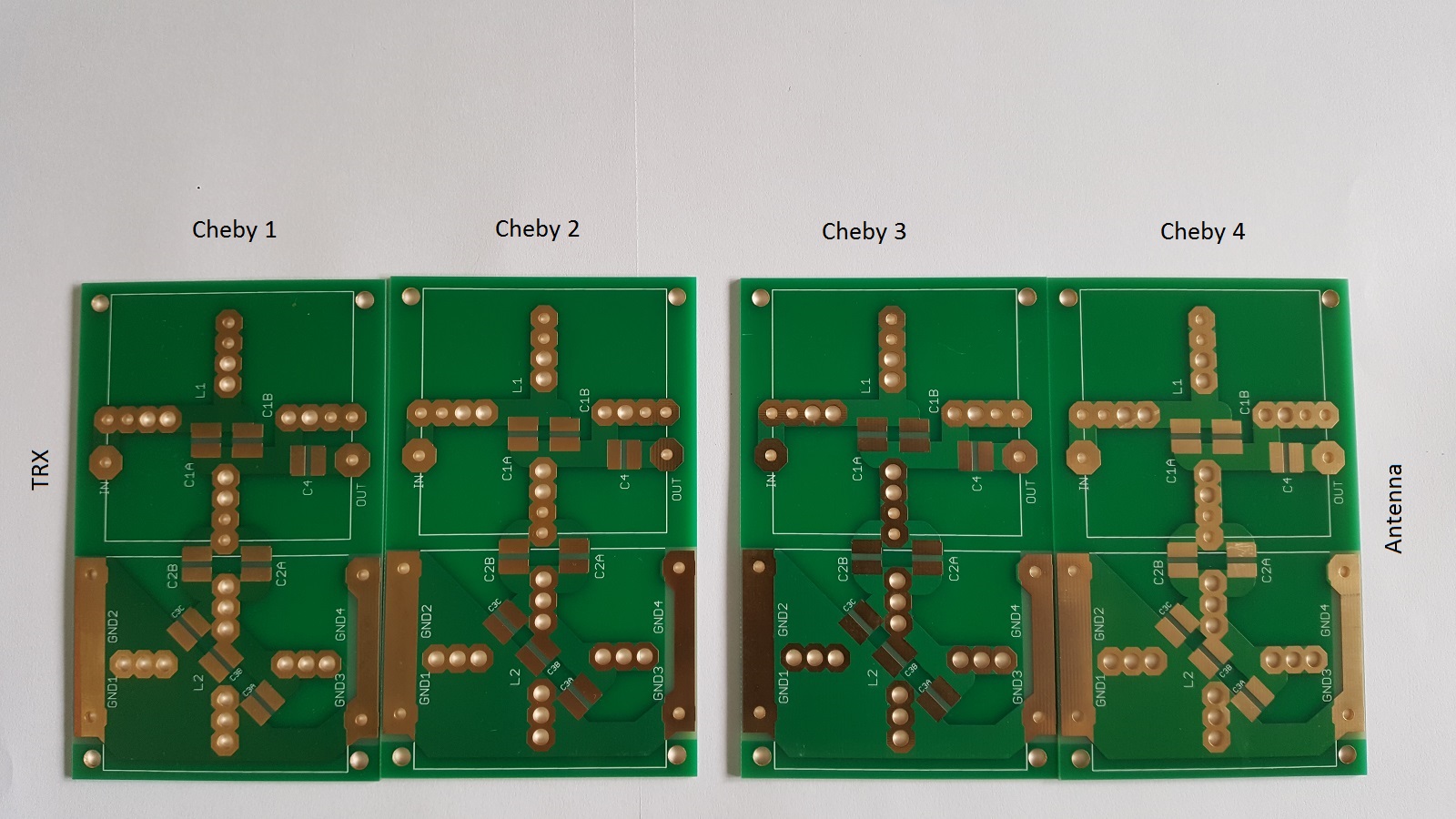

Cheby 1 +2 prints


Cheby 3 + cheby 4 prints

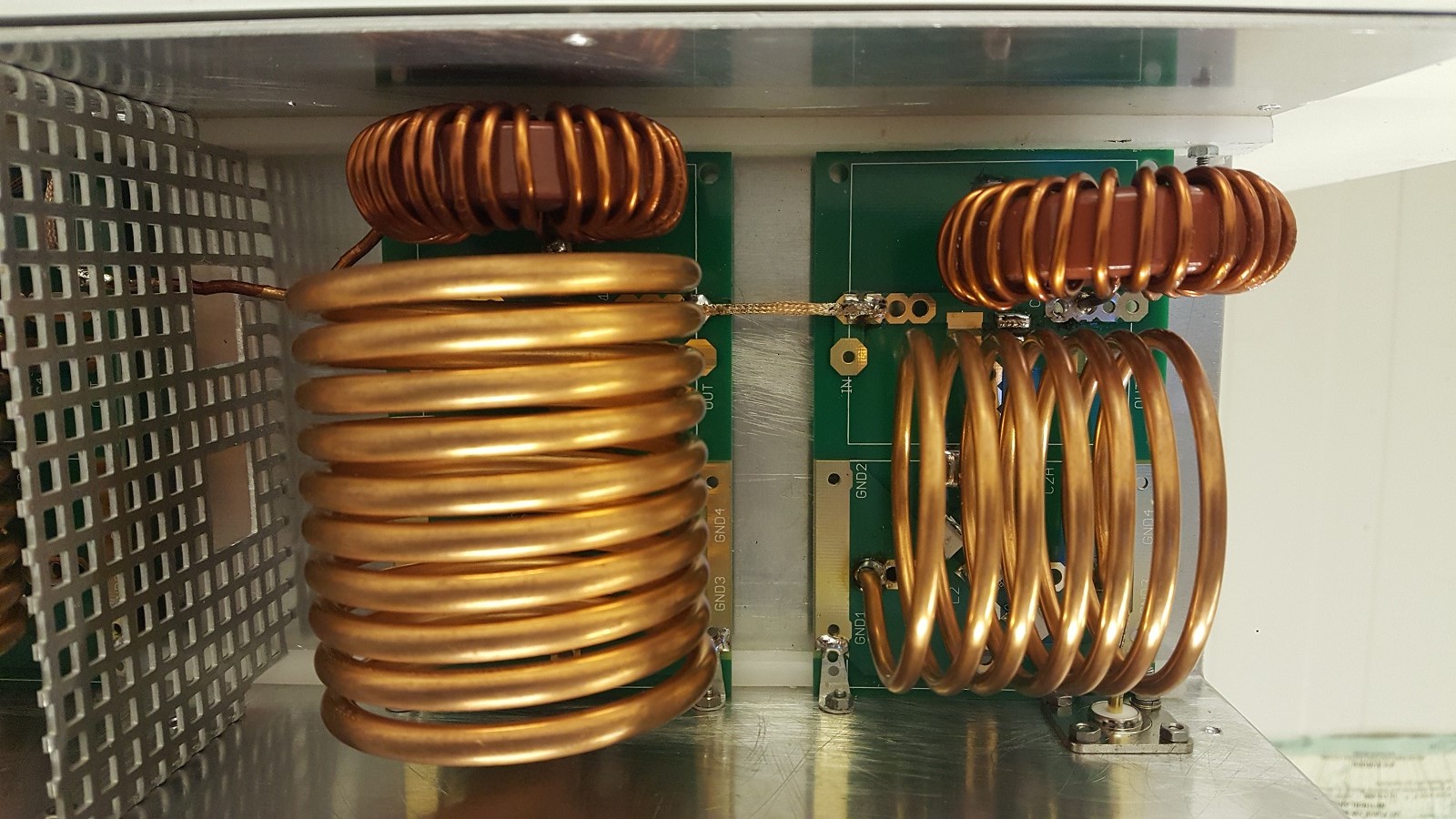

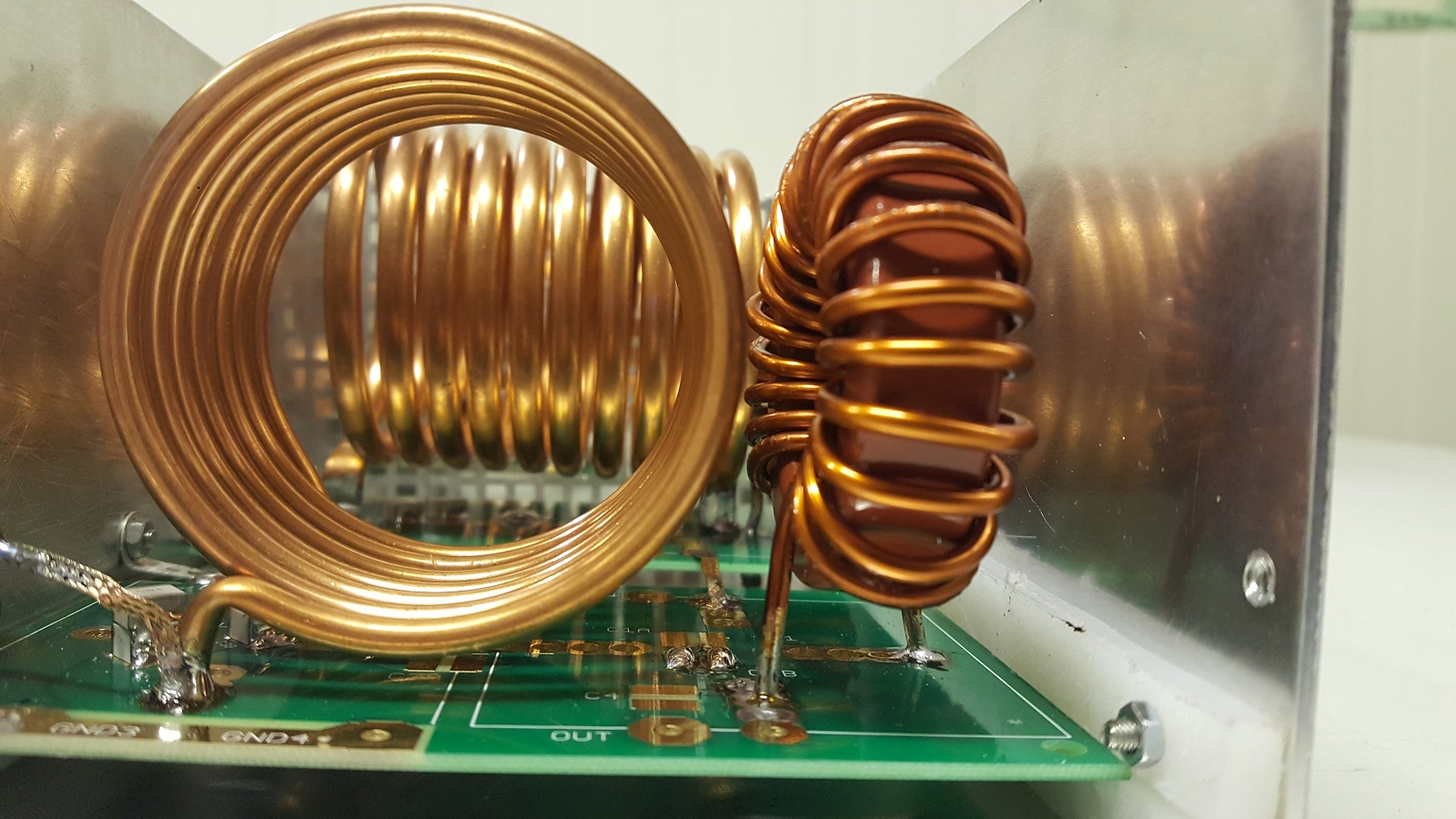

A close up cheby print 4

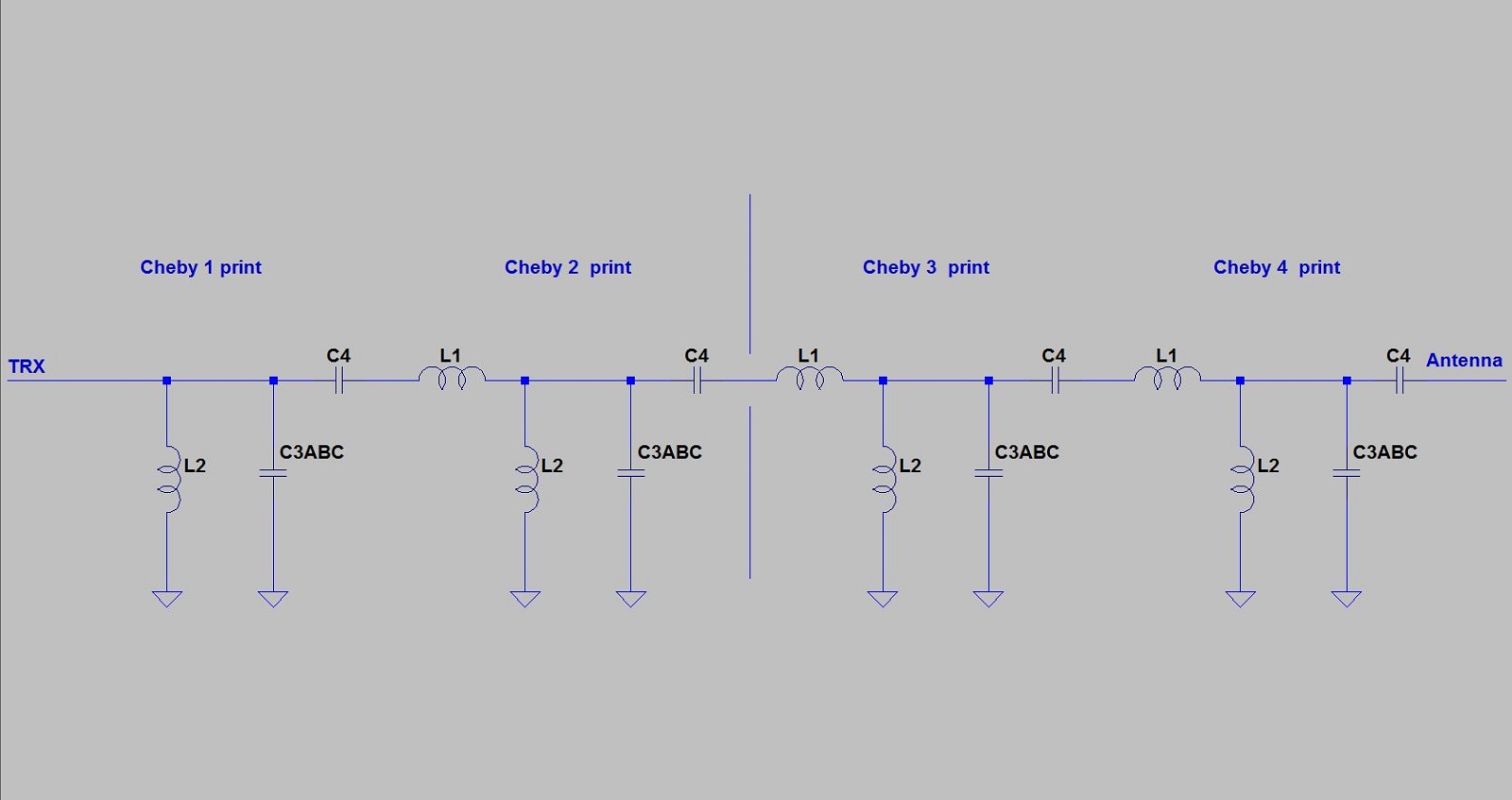

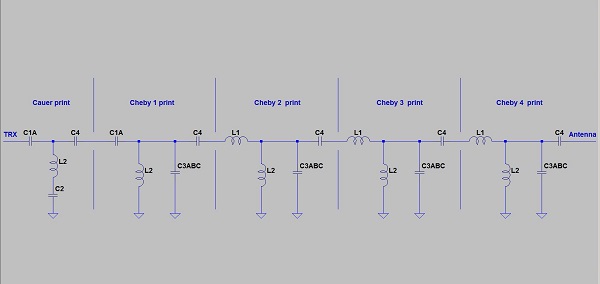

Schematic layout

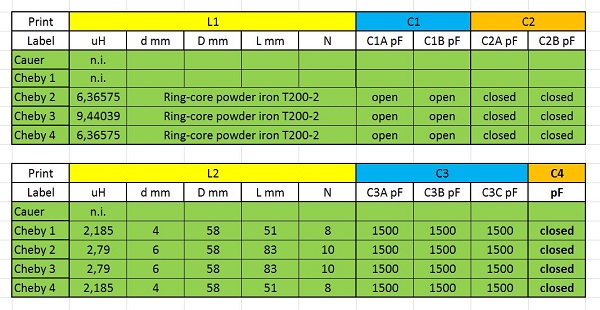

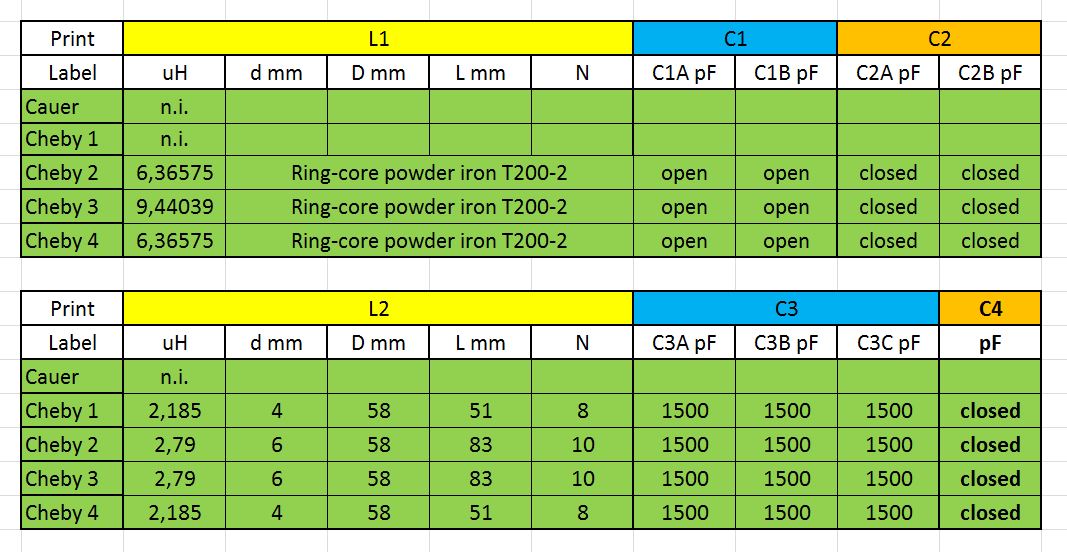

160 meter values
D = diameter body to wind the coil.
