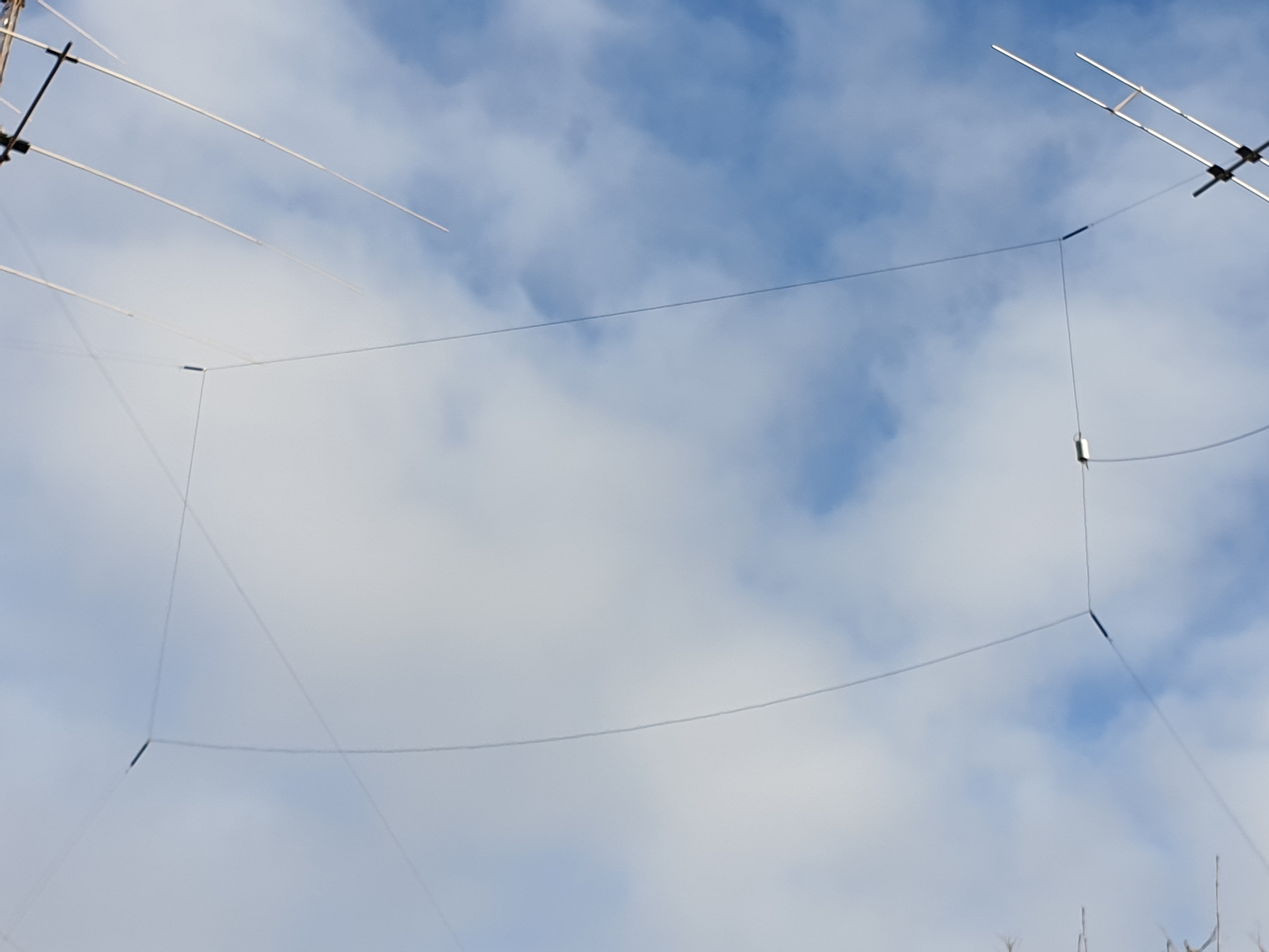

For 30M we built an Oblong antenna.

It has a gain of 3 dB in the east-west direction and a relatively low radiation angle. The impedance is approx. 62 Ohms, which is transformed to 50 Ohms by a symmetrical LC network that sits in the PVC pipe in the feed point. The antenna is supported by two towers and fed with 50 Ohm coax
