From bottom up:
Cable to the shack. N female connector to the bandpass filter. Bandpassfilter to splitter/diversity box. Coax to the antennas.

From left to the right:
Splitter/diversity box 10-40M RX box 80-160M
High power bandpass filters 10-80M and in RX path W3NQN filters
RX (diversity) antenna. splitter/diversity box controller TX antenna.

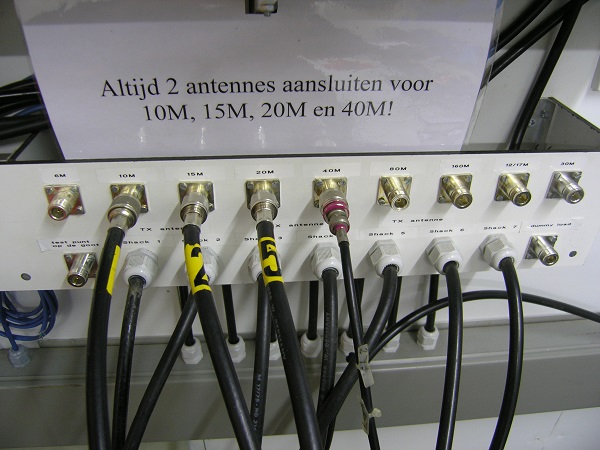

With seven operating posities, its handy to reroute antennes to each position. Here to can choose all available antennas including the 5Kw dummyload for testing.

More photo's who we did it can be found here.

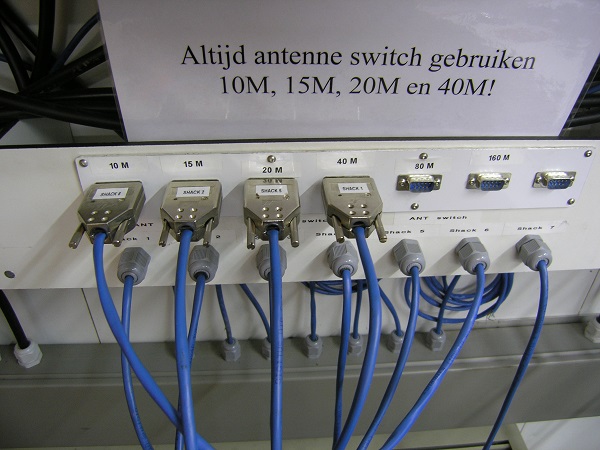

Even the splitter/diversity box control line can be patched.
